High Heat Resistance Nylon 6 Raw Material Mechanical Equipment Electrical Parts

Brand Name : UBE

Model Number : PA6 1013B

Certification : MSDS

Place of Origin : Japan

MOQ : 25KG

Price : USD1.8-2.3KG

Payment Terms : T/T

Supply Ability : 500TONS

Delivery Time : 7-15days

Packaging Details : 25 Kg/pack

Viscosity : Medium viscosity

flame retardant rating : V-2

Process : Injection molding

Density : 1.14g/cm³

Rockwell Hardness R(Scale) : 120

Rockwell Hardness M(Scale) : 80

Arc Resistance : 119S

Elongation Break : 30%

Contact Now

Products Description

High Heat Resistance Nylon 6 Raw Material Mechanical Equipment Electrical Parts

PA6 Japan UBE 1013B High Heat Resistance High Mechanical Strength Wear Resistance Chemical Resistance Automotive Parts Application Mechanical Equipment Application Electrical Parts Application

PA6 1013B is known for its high mechanical strength and wear resistance. It can maintain a long service life in high wear environments and is suitable for various industrial applications ‌. It has good resistance to a variety of chemicals, is not easy to be corroded or dissolved, suitable for use in a variety of chemical environments ‌. It is also highly transparent, making it a significant advantage in applications where the internal structure of a material needs to be revealed, such as medical devices and electronic components. At the same time, its high heat resistance enables it to maintain stable performance in high temperature environments, which is suitable for automotive engine parts and high temperature operating equipment ‌.

product feature

PA6
1013B
Product information
Part Marking Code	>PA6<
Color	NC
Material Shape	Pellets
Process	Injection molding
Viscosity	Medium viscosity
FR	V-2
Material Attribute	Injection grade
specification	·UL
UL File NO.	E48133
Certificate	UL
Physical property	Standard	Value	Unit
Density	ISO 1183	1.14	g/cm³
Shrinkage Flow 30x100x3mm	INTERNAL METHOD	1.4	%
Shrinkage xFlow 30x100x3mm	INTERNAL METHOD	1.5	%
Water Absorption 23℃50RH	INTERNAL METHOD	3	%
Hardness	Standard	Value	Unit
Rockwell Hardness R(Scale)	ISO 2039	120
Rockwell Hardness M(Scale)	ISO 2039	80
Mechanical behavior	Standard	Value	Unit
Tensile Modulus	ISO527	2.9	GPa
Tensile Strength Yield	ISO 527	80	MPa
Elongation Break	ISO527	30	%
Flexural Strength	ISO 178	110	MPa
Flexural Modulus	ISO 178	2.7	GPa
Charpy Notch Impact leA	ISO 179	6	kJ/m²
Thermal	Standard	Value	Unit
HDT 0.45MPa	ISO 75	155	℃
HDT 1.8MPa	ISO 75	60	℃
Melting Temperature	ISO 11357	215~225	℃
CLE	ISO 11359	8E-5	cm/cm/℃
Electrical properties	Standard	Value	Unit
Volume Resistivity	JIS K6911	1E15	Ω.cm
Dielectric Strength	IEC 60243	20	KV/mm
Dielectric Constant	IEC 60250	3.5
Arc Resistance	ASTM D495	119	S
CTI Rating	UL746A	0	PLC
Flammability	Standard	Value	Unit
Flame Rating All Color 0.75mm	UL94	V-2
Flame Rating All Color 1.5mm	UL94	V-2
Flame Rating All Color 3.0mm	UL94	V-2
Flame Rating All Color 6.0mm	UL94	V-2
UL	Standard	Value	Unit
UL FlameRating ALL 0.75mm	UL94	V-2
UL FlameRating ALL 1.5mm	UL94	V-2
UL FlameRating ALL 3.0mm	UL94	V-2
UL FlameRating ALL 6.0mm	UL94	V-2
HWI ALL1.5mm	UL746A	4	PLC
HWI ALL 3.0mm	UL 746A	3	PLC
HWI ALL 6.0mm	UL746A	3	PLC
HAI ALL 1.5mm	UL746A	0	PLC
HAI ALL 3.0mm	UL746A	0	PLC

Application

High Heat Resistance Nylon 6 Raw Material Mechanical Equipment Electrical Parts

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

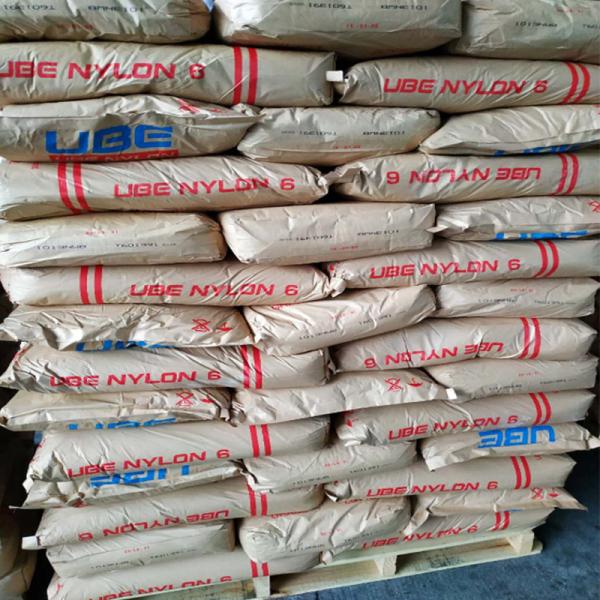

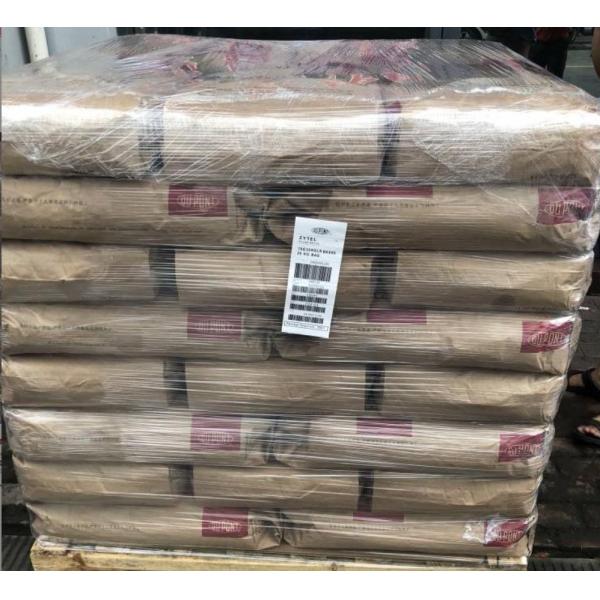

Warehouse:
